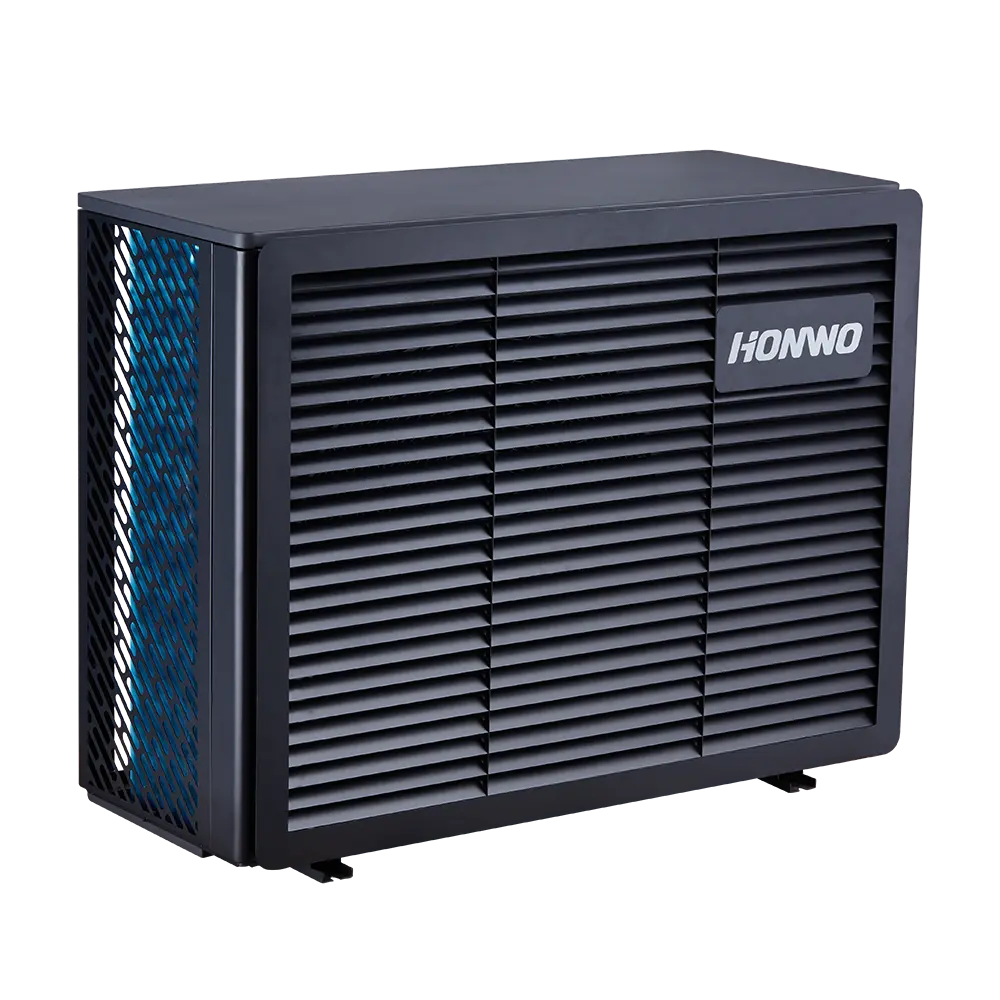

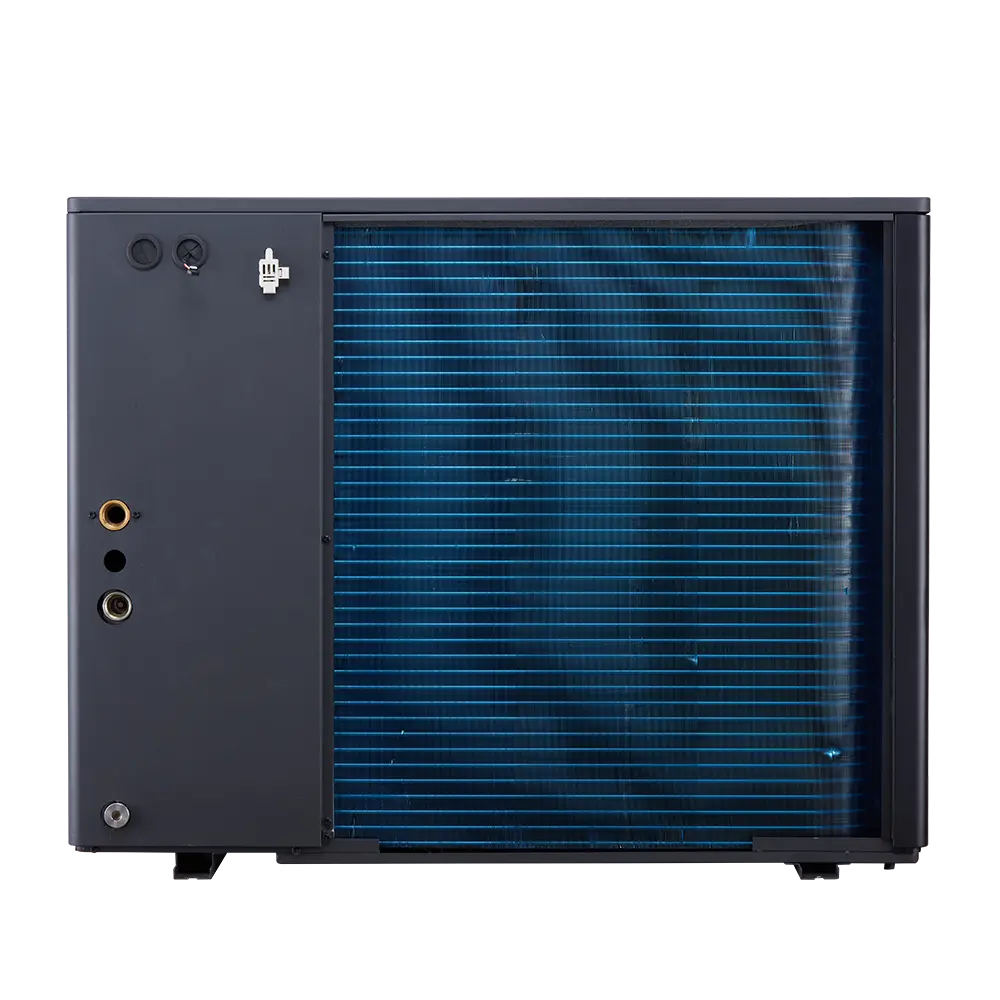

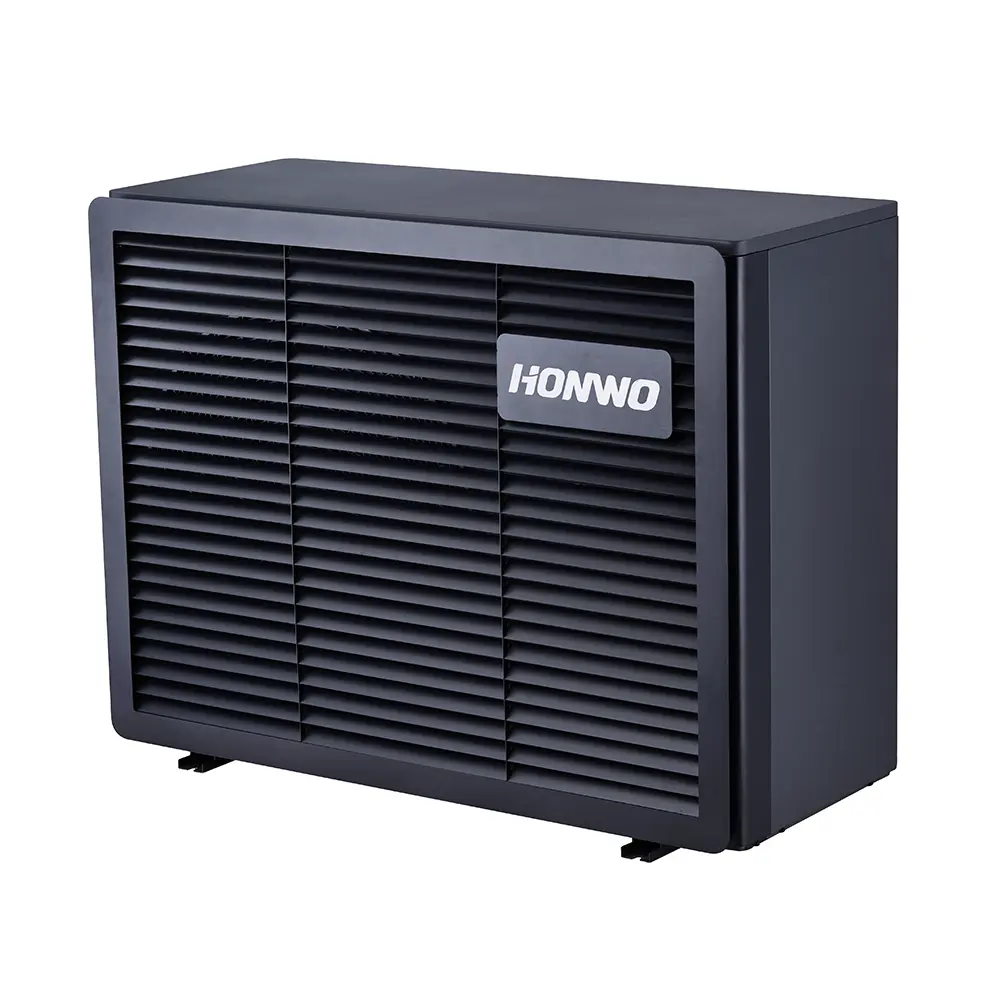

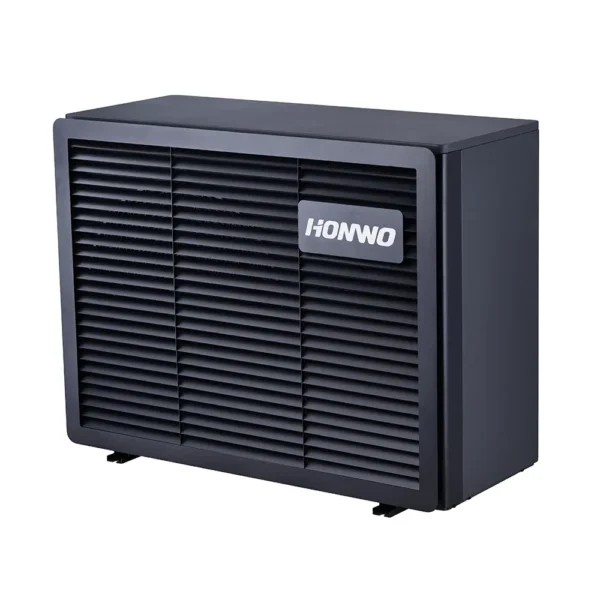

HONWO’s R290 Monoblock ATW Heat Pump brings together the most advanced features in modern HVAC: ultra-low-carbon R290 refrigerant (GWP 3/ODP 0) for a truly green footprint, industry-leading seasonal efficiency up to A+++ at 35 °C water temperature, and high-temperature output up to 80 °C. Engineered for extreme climates, it delivers hot water at 55 °C even at –25 °C ambient and 75 °C at –10 °C.
Uses natural R290 refrigerant with GWP of only 3 and zero ODP.
Achieves seasonal energy efficiency class A+++ at 35 °C water temperature.
All-DC inverter technology (compressor, fan, pump) for minimal power draw and stable COP up to 6.1.
Provides hot water up to 75 °C at –10 °C ambient and 55 °C at –25 °C ambient.
Max leaving water temperature (LWT) up to 80 °C (without e-heater assisted).
Sound pressure as low as 35 dB(A) at 3 m for whisper-quiet comfort.
Six-stage antifreeze protection ensures stable winter performance.
2-zone independent temperature control for personalized comfort and bill savings.
Smart app integration with remote monitoring, software updates, and fault alerts.

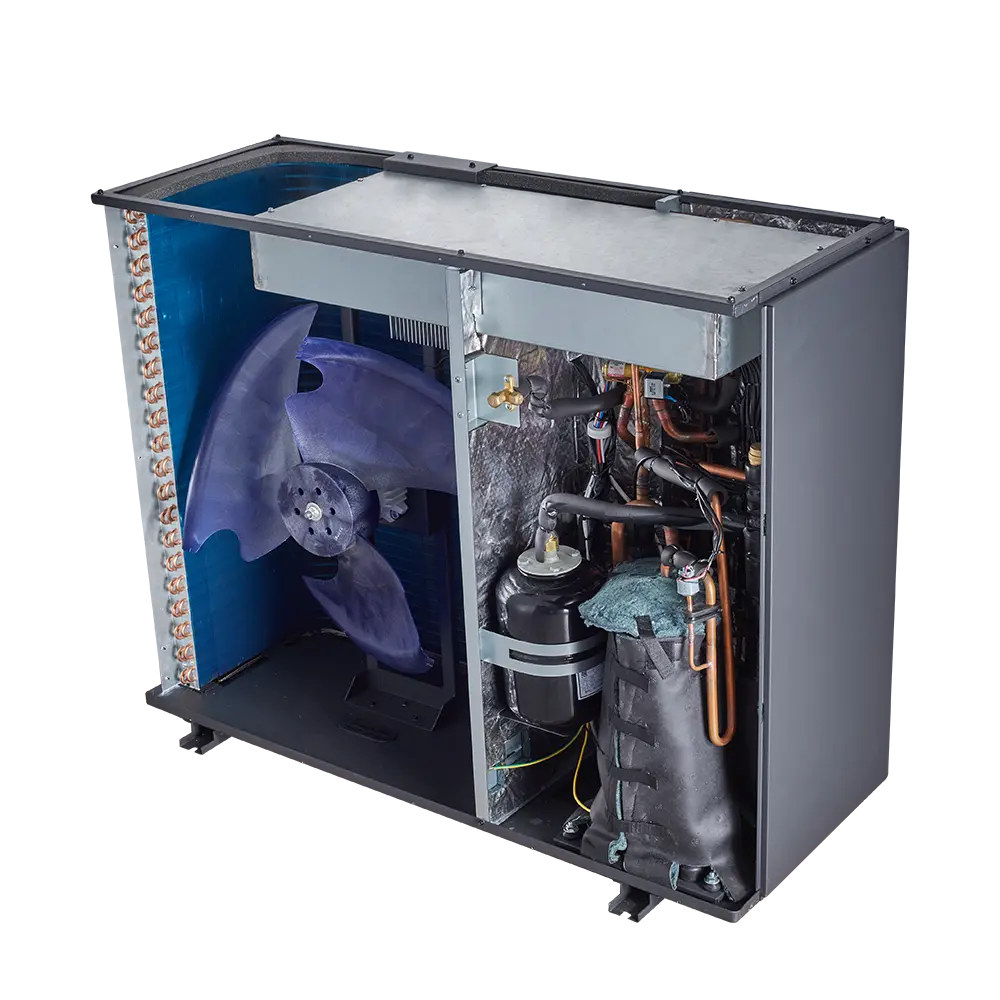

Hermetic, explosion-proof control box for enhanced reliability.

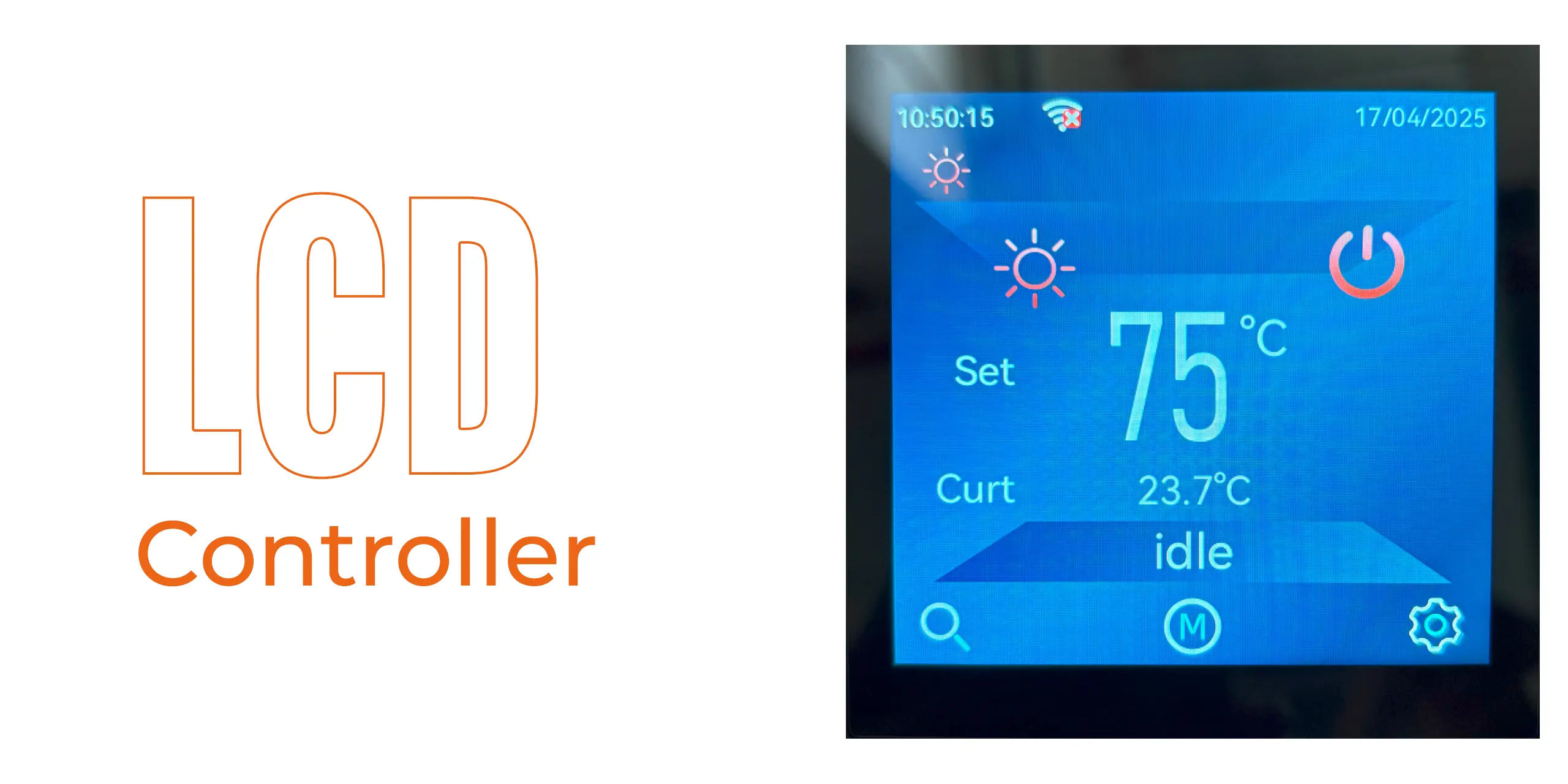

Color touchscreen controller with intuitive UI, Wi-Fi, Modbus, and multilingual support.
Noise-reduction casing with shock-absorbing mounts.

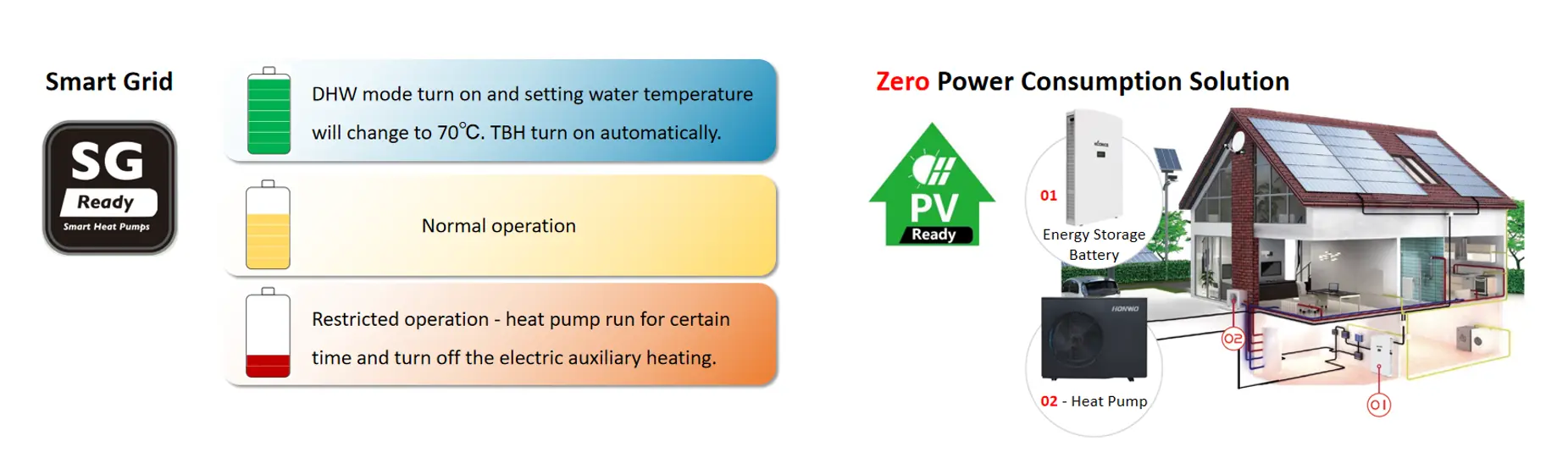

Equipped with the industry-standard SG-Ready interface, this heat pump can receive external load-management signals—such as time-of-use price cues or grid-frequency notifications—to automatically adjust its runtime and maximize self-consumption of onsite renewables (e.g. PV) or participate in demand-response programs. This ensures you get the lowest operating costs, helps stabilize the public grid during peak periods, and makes your HVAC system “future-proof” as Europe’s energy networks evolve.
Grid-Friendly Demand-Response: Temporarily shed or shift heating to off-peak times at the grid operator’s signal, reducing strain on the network and earning potential tariff rebates.
PV-Smart Operation: When paired with a solar inverter or smart energy manager, the SG-Ready interface lets the heat pump soak up excess PV generation, storing solar energy as heat rather than exporting at low feed-in tariffs.
Standardized BWP Certification: Conforms to the German Heat Pump Association’s SG-Ready specification, guaranteeing compatibility across all major European smart-grid platforms.
By combining R290’s ultra-low GWP and high COP with SG-Ready intelligence, you gain a truly low-carbon, low-cost heating solution optimized for tomorrow’s energy systems.
Residential Homes: Replace gas boilers with zero-carbon heating and hot water.
Multi-Zone Apartments: Simultaneously manage living room, bedroom, and study comfort.
Commercial Spaces: Offices, small hotels, and retail stores seeking low-noise, high-efficiency heating.
Extreme Climates: Reliable heating even at –25 °C, ideal for Northern European and cold-region installations.
| Model: | 7kW | 9kW | 13kW | 15kW | 13kW | 15kW | 18kW | 21kW | |
| Power Supply | 220-240V/1PH / 50HZ | 380-415V/3PH / 50HZ | 380-415V/3PH / 50HZ | ||||||
| Heating A7W35 | Heating Capacity (kW) | 2.50~6.95 | 3.56~8.91 | 4.55~12.92 | 6.10~14.98 | 4.55~12.92 | 6.10~14.98 | 6.50~18.00 | 6.90~20.66 |
| Power Input (kW) | 0.41~1.48 | 0.59~1.98 | 0.75~2.80 | 1.01~3.41 | 0.75~2.80 | 1.01~3.41 | 1.08~3.92 | 1.15~4.69 | |
| COP | 6.10~4.68 | 6.03~4.50 | 6.06~4.61 | 6.00~4.39 | 6.06~4.61 | 6.00~4.39 | 6.01~4.59 | 5.98~4.40 | |
| Heating A7W55 | Heating Capacity (kW) | 2.00~5.80 | 3.15~7.98 | 3.90~11.32 | 5.40~13.91 | 3.90~11.32 | 5.40~13.91 | 5.70~16.80 | 5.80~18.55 |
| Power Input (kW) | 0.43~1.86 | 0.68~2.61 | 0.85~3.71 | 1.17~4.83 | 0.85~3.71 | 1.17~4.83 | 1.24~5.69 | 1.26~6.31 | |
| COP | 4.63~3.11 | 4.63~3.06 | 4.59~3.05 | 4.60~2.88 | 4.59~3.05 | 4.60~2.88 | 4.60~2.95 | 4.60~2.94 | |
| Cooling A35W7 | Cooling Capacity (kW) | 1.20~4.50 | 1.53~6.54 | 2.93~8.87 | 3.50~10.00 | 2.93~8.87 | 3.50~10.00 | 4.00~13.50 | 4.40~14.40 |
| Power Input (kW) | 0.26~1.55 | 0.33~2.31 | 0.63~3.26 | 0.76~3.70 | 0.63~3.26 | 0.76~3.70 | 0.86~4.50 | 0.95~4.69 | |
| EER | 4.62~2.90 | 4.64~2.82 | 4.65~2.72 | 4.63~2.70 | 4.65~2.72 | 4.63~2.70 | 4.63~3.00 | 4.63~3.08 | |
| Max. Power Input (kW) | 2.8 | 4 | 5 | 6 | 5 | 6 | 6.5 | 6.8 | |
| Max. Running Current (A) | 12.7 | 18.3 | 22.9 | 27.3 | 8.7 | 10.8 | 11.3 | 11.6 | |
| Max. Outlet Water Temp. (°C) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Operation Range (°C) | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | |
| Rated Water Flow (m³/h) | 1.03 | 1.5 | 2.19 | 2.75 | 2.19 | 2.75 | 3.1 | 3.44 | |
| Compressor | Type | DC twin rotary | |||||||
| Fan | Rated Water Flow (m³/h) |
1.03 | 1.5 | 2.19 | 2.75 | 2.19 | 2.75 | 3.1 | 3.44 |
| Type | DC motor | ||||||||
| Number | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Air side heat exchanger | Type | Fin coil | |||||||
| Throttle | Type | Electronic expansion valve | |||||||
| Water side heat exchanger |
Type | Plate | |||||||
| Water pump | Type | DC,Shielded | |||||||
| Max. head(m) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| Expansion Tank (L) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Seasonal Space Heating Energy Efficiency Class | Water outlet at 35°C | A+++ | |||||||
| Water outlet at 55°C | A++ | ||||||||
| Refrigerant | Type | R290 | |||||||
| Charge Volume (g) | 780 | 780 | 1020 | 1020 | 1020 | 1020 | 1250 | 1250 | |
| Sound Pressure Level dB(A) at 1m | 43~53 | 43~54 | 43~55 | 44~56 | 43~55 | 44~56 | 44~56 | 44~56 | |
| Water Pipe Connection | G1′ | ||||||||
| Internal Water Pressure Drop(kPa) | 17 | 20 | 24 | 28 | 24 | 28 | 40 | 44 | |
| Water Proof Class | IPX4 | ||||||||
| Electricity Shock Proof | I | ||||||||
| Net Dimensions (L×H×W) (mm) | 1150*905*460 | 1150*1368*460 | |||||||
| Packing dimension (L×H×W)(mm) | 1240*920*570 | 1240*1383*570 | |||||||
| Net weight（kg） | 111 | 111 | 119 | 119 | 119 | 119 | 160 | 160 | |
| Gross weight（kg） | 123 | 123 | 131 | 131 | 131 | 131 | 170 | 170 | |
| Note: | |||||||||
| 1. The above data test reference standard EN14511; EN14825; EN50564; EN12102; (EU) No:811/2013; (EU)No:813/2013; OJ 2014/C 207/02. | |||||||||
| 2. Sound power test condition：EN12102-1 | |||||||||
| 3. Seasonal space heatingenergy efficiency class testes in average climate general conditions | |||||||||
