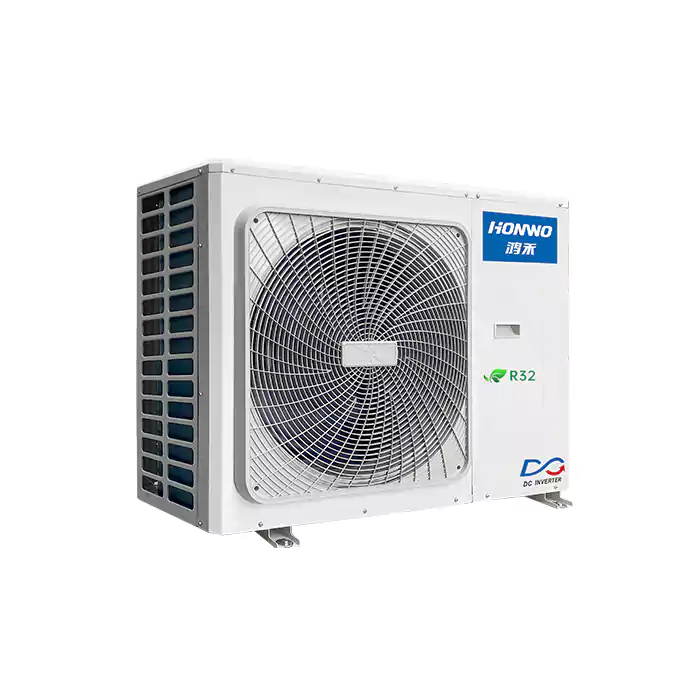

The heat pump is developed for house heating / cooling and domestic hot water, which adopts full DC inverter technology and R32 refrigerant to attain A+++ energy label.
All major components (compressor, fan, pump) use variable-speed inverters for rapid adaptation and maximized COP—up to 4.85. Natural R32 refrigerant ensures low environmental impact and high performance even in extreme climates.
Unlike split systems, HONWO’s monoblock houses all hydronic components on the outdoor unit; installers only connect water pipes, reducing leak risks and installation time.
ErP A+++ rating (35 °C flow) means up to 30 % less energy than lower-rated systems. Operates reliably from –25 °C to 43 °C, providing hot water up to 60 °C at –15 °C ambient and up to 65 °C with backup electric heater.
LCD touchscreen plus app control enables scheduling, remote diagnostics, and firmware updates. Sound levels down to 36 dB(A) at 3 m make it one of the quietest in its class.
Equipped with the industry-standard SG-Ready interface, this heat pump can receive external load-management signals—such as time-of-use price cues or grid-frequency notifications—to automatically adjust its runtime and maximize self-consumption of onsite renewables (e.g. PV) or participate in demand-response programs. This ensures you get the lowest operating costs, helps stabilize the public grid during peak periods, and makes your HVAC system “future-proof” as Europe’s energy networks evolve.
Grid-Friendly Demand-Response: Temporarily shed or shift heating to off-peak times at the grid operator’s signal, reducing strain on the network and earning potential tariff rebates.
PV-Smart Operation: When paired with a solar inverter or smart energy manager, the SG-Ready interface lets the heat pump soak up excess PV generation, storing solar energy as heat rather than exporting at low feed-in tariffs.
Standardized BWP Certification: Conforms to the German Heat Pump Association’s SG-Ready specification, guaranteeing compatibility across all major European smart-grid platforms.
By combining R32’s low GWP and high COP with SG-Ready intelligence, you gain a truly low-carbon, low-cost heating solution optimized for tomorrow’s energy systems.
Commercial Installations: Projects requiring precise dual-zone control for offices, hotels, or retail spaces.
Residential Complexes: Centralized heating, cooling, and DHW in multi-unit buildings.
Retrofits: Replacement of old boilers or split-systems with a space-saving monoblock.
Extreme Climates: Reliable performance even at –25 °C, ideal for cold-climate projects.
Certifications: CE, ErP A+++, TÜV SÜD tested
Warranty: 3-year compressor & heat exchanger; 2-year parts
Service Network: Authorized partners across Europe and global after-sales support
Case Study: Achieved 40 % energy savings vs. traditional boilers in a Spanish hotel retrofit
| Parameter | Specification |
|---|---|
| Heating Capacity | 6 – 16 kW |
| Cooling Capacity | 5 – 14 kW |
| COP | Up to 4.85 |
| ErP Efficiency Rating | A+++ @ 35 °C |
| Ambient Temp. Range (Heating) | –25 °C – 43 °C |
| Water Outlet Temperature | 5 °C – 65 °C |
| Water Pump Lift | 9 m |
| Noise Level | 35 dB(A) @ 3 m |
| Controller | LCD Touchscreen + Wi-Fi |
| Dimensions (WxDxH) | 1040*450*850 mm |
| Weight | 75 kg |
| Model | 6kW | 8kW | 10kW | 12kW | 14kW | 16kW | 12kW | 14kW | 16kW | ||
| Power supply(V/Ph/Hz) | 220-240V/1PH / 50HZ | 380-415V/3PH / 50HZ | |||||||||
| Heating A7W35 | Capacity | W | 6800 | 8400 | 10000 | 12000 | 14100 | 16000 | 12000 | 14100 | 16000 |
| Rated input | W | 1417 | 1732 | 2237 | 2479 | 3065 | 3604 | 2479 | 3065 | 3604 | |
| COP | 4.80 | 4.85 | 4.47 | 4.84 | 4.60 | 4.44 | 4.84 | 4.60 | 4.44 | ||
| Heating A7W45 | Capacity | W | 6829 | 8200 | 10000 | 12500 | 14500 | 16200 | 12500 | 14500 | 16200 |
| Rated input | W | 1880 | 2247 | 2857 | 3378 | 4017 | 4696 | 3378 | 4017 | 4696 | |
| COP | 3.63 | 3.65 | 3.50 | 3.70 | 3.61 | 3.45 | 3.70 | 3.61 | 3.45 | ||
| Cooling A35W7 | Capacity | W | 5757 | 7500 | 9000 | 11800 | 12500 | 13200 | 11800 | 12500 | 13200 |
| Rated input | W | 1904 | 2419 | 3103 | 4069 | 4386 | 4800 | 4069 | 4386 | 4800 | |
| COP | 3.02 | 3.10 | 2.76 | 2.90 | 2.85 | 2.75 | 2.90 | 2.85 | 2.75 | ||
| Seasonal space heating energy efficiency class |
Water outlet at 35⁰C | A+++ | |||||||||
| Water outlet at 55⁰C | A++ | ||||||||||
| Sound power level | Heating A7W35 | dB(A) | 63 | 63 | 63 | 65 | 66 | 67 | 65 | 66 | 67 |
| Compressor | Type | DC inverter twin-rotary | |||||||||
| Fan | Motor type | Brushless DC motor | |||||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Air flow | m3/h | 3900 | 4500 | 4500 | 5200 | 5200 | 5200 | 5200 | 5200 | 5200 | |
| Air side heat exchanger | Type | Hydrophilic aluminum & Inner groove copper tube | |||||||||
| Refrigerant | Type | R32 | |||||||||
| Charge Volume | g | 1250 | 1800 | ||||||||
| Throttle | Type | Electronic expansion valve | |||||||||
| Water side heat exchanger | Type | Plate | |||||||||
| Rated water flow | m3/h | 1.170 | 1.445 | 1.720 | 2.064 | 2.425 | 2.752 | 2.064 | 2.425 | 2.752 | |
| Water pump | Type | DC,Shielded | |||||||||
| Max. pump head | m | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |
| Expansion vessel | Volume | L | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Safety valve | MPa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Water flow switch | m3/h | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | |
| Inlet/outlet water pipes size | G5/4″BSP | ||||||||||
| Backup electric heater | Standard | Field Supply | |||||||||
| Net dimension (W×H×D) | mm | 1040*850*450 | |||||||||
| Packing dimension (W×H×D) | mm | 1150*983*527 | |||||||||
| Outdoor net weight | kg | 75 | 88 | ||||||||
| Outdoor gross weight | kg | 91 | 104 | ||||||||
| Notes: 1. The specification may be changed for product improvement, please refer to the nameplate of product. 2. Seasonal space heating energy efficiency class is tested in average climate conditions. 3. Relevant EU standards and legislation: EN14511, EN50564, EN14825, EN12102, (EU) No 811:2013, (EU) No 813:2013, QJ 2014/C 207/02:2014. |
|||||||||||
